Templates are a core feature of the platform that brings efficiency, standardization, and configuration into the shipment creation workflow.

By defining templates, organizations can ensure that best practices and consistent configurations are followed.

Templates can be used during the shipment creation process to:

Standardize shipping configurations.
Streamline repetitive shipment setups.
Define tracking options and hierarchies effectively.
Ensure compliance with operational protocols.

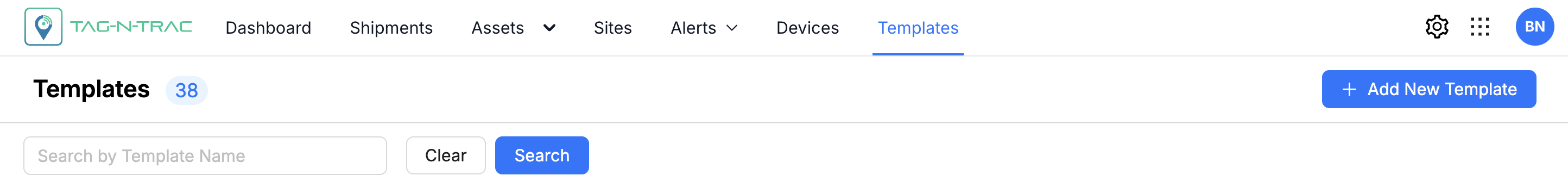

Accessing Templates

Navigate to the top menu bar.
Click on Templates to open the menu.

Template Levels and Hierarchy

In logistics or supply chain systems, template levels refer to the structural depth or complexity of templates used to standardize and manage operations such as shipments, assets, inventory, or workflow processes.

1-Level Template

This is a basic, flat template structure with no dependencies or hierarchies. Ideal for straightforward processes like a single shipment form, asset check-in, or basic delivery task.

Example: A shipment template that includes origin, destination, and carrier info without sub-processes.

2-Level Template

This is a hierarchical template with a main (parent) template and one level of associated sub-processes. Suitable for workflows that require a breakdown of tasks or dependencies between components.

Examples:

Parent Template: Master Shipment Order.
Child Template: Individual delivery or container details under the master order.

3-Level Template

Nested templates with more than two layers, enabling complex workflows with detailed tracking. Used in advanced logistics or supply chain operations, such as multi-leg shipments.

Examples:

Level 1: BOL Level
Level 2: Container Level
Level 3: Pallet or Box Level

Best Practices

Use 1-level templates for speed and simplicity in repetitive tasks.
Use 2-level templates when tasks are interdependent (example: a container within a shipment).
Use 3-level templates for comprehensive tracking and reporting in complex workflows.

Add New Template

The Add New Template feature enables the users to create various levels of templates and modify them in the later stages. This topic describes the options in this feature.

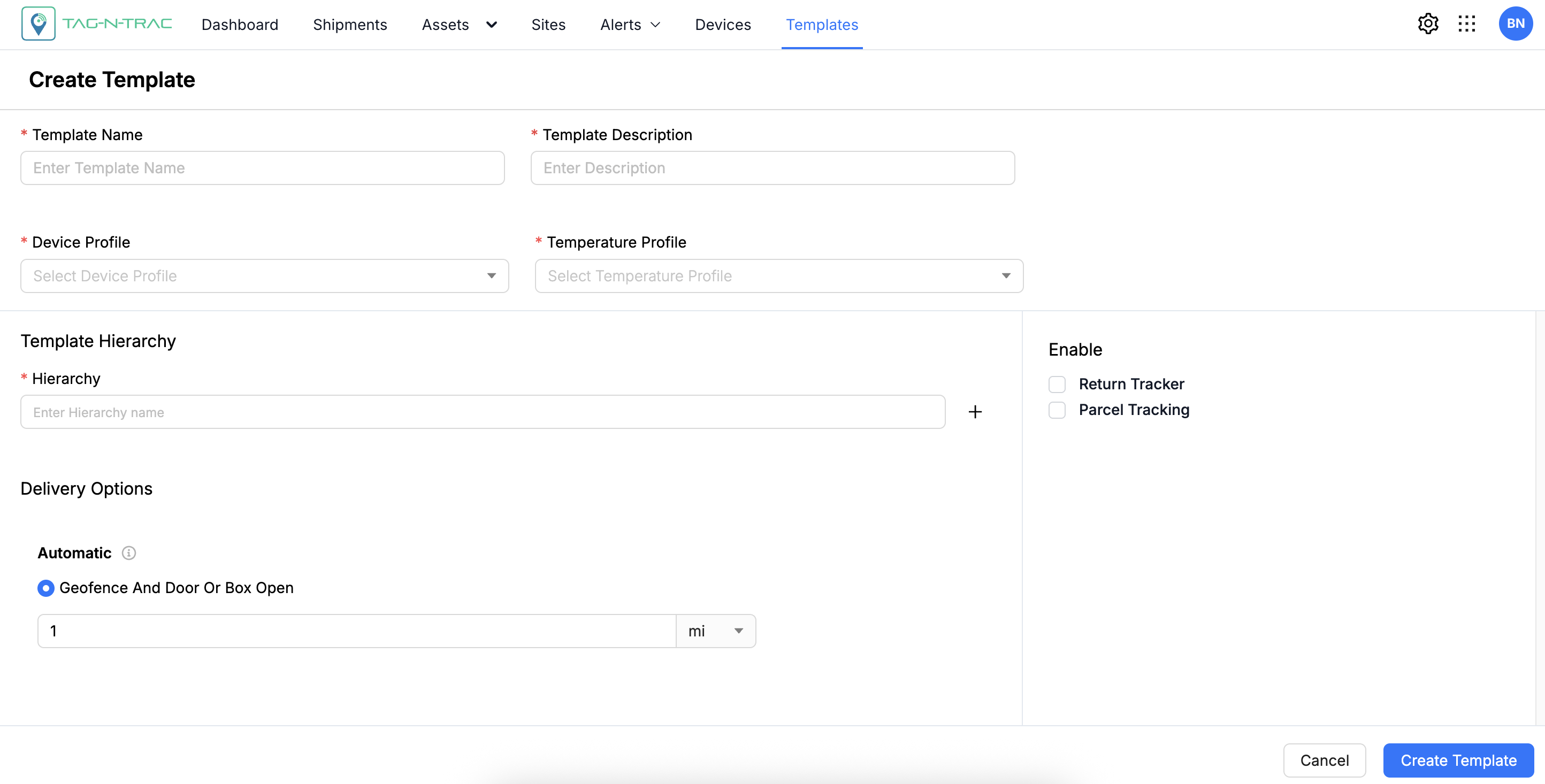

Click + Add New Template to begin the process. Clicking on this opens a drawer window where you must input and choose options of your choice by using the checkboxes.

This drawer window contains the following fields:

Template Fields Explanation

The following sections describe each field available in the Add New Template interface. Use this guide to understand the purpose, usage, and validation requirements for each field.

Note: Make sure to save your template once all fields are filled. Templates can be edited later if adjustments are needed.

Field	Description	Example	Validation Rules
Template Name	A unique name assigned to the template for identification and reference within the platform.	`Simple Delivery` — used for similar shipment operations.	Mandatory Must be a unique name and easy for identification.
Template Description	A brief summary describing the purpose and scope of the template. Stored in the platform for clarity.	Used to track electronics deliveries to retail partners. Includes proof of delivery and return tracking.	Mandatory
Device Profile	Specifies the device configuration used for shipment tracking, including communication mode and data recording frequency.	Cold Chain Tracker – Cellular	Mandatory Must select an existing profile from the predefined list.
Temperature Profile	Defines the allowable temperature range for monitoring shipments within controlled environments.	Refrigerated (2°C – 8°C)	Mandatory for temperature-sensitive shipments. Must select from predefined temperature profiles.
Template Hierarchy	Defines the parent-child structure between assets (e.g., shipments, containers, pallets).	A single shipment is the parent; individual boxes or pallets are children associated with the shipment.	Mandatory Accepts alphanumeric values Use + symbol to add hierarchical levels
Return Tracker	Ensures the tracking devices are returned post-shipment for reuse or disposal.	Platform tracks return status of hardware/tracker used in a completed delivery.	Incompatible with Phone as Tracker and Return Shipment Requires Return Tracking ID and Return Carrier
Parcel Tracking	Enables shipment visibility at the parcel level for detailed monitoring across logistics stages.	Used when tracking multiple parcels within a single shipment or distribution batch.	Optional: Applicable only when parcel-level data is available.
Cancel	Cancels template creation and exits setup without saving.	Use when you choose not to proceed with template creation.	NA
Create Template	Saves the configured template to the system for future reuse.	Use to finalize a shipment template that can be reused for electronics deliveries.	NA

Templates Example

This topic describes the topic types and the examples that you can refer when creating templates.

1-Level Template: Standard

Template Name Electronics Delivery – Standard

Template Description A simple shipment template for transporting shipments from a warehouse or source address without using a sub-hierarchy.

Template Hierarchy Single level — all assets are tracked under one shipment.

2-Level Template: Container Level

Template Name Retail Distribution – Container Level

Template Description A container-based delivery structure for tracking asset flow from warehouse to multiple outlets.

Template Hierarchy Two levels — Master shipment (parent) > Containers (children)

3-Level Template: Multi-Tier

Template Name Global Shipment – Multi-Tier

Template Description A multi-leg shipment setup for goods requiring granular tracking from BOL to container to box or unit levels.

Template Hierarchy Three levels:

Level 1: BOL
Level 2: Containers
Level 3: Pallets or Boxes

Best Practices

Consistent Naming Conventions: Use clear and consistent names for templates to avoid confusion.
Detailed Descriptions: Provide comprehensive descriptions to ensure users understand the purpose and configuration of each template.
Regular Updates: Periodically review and update templates to reflect any changes in operational procedures or compliance requirements.
Testing: Test templates in a controlled environment before deploying them across the organization.
